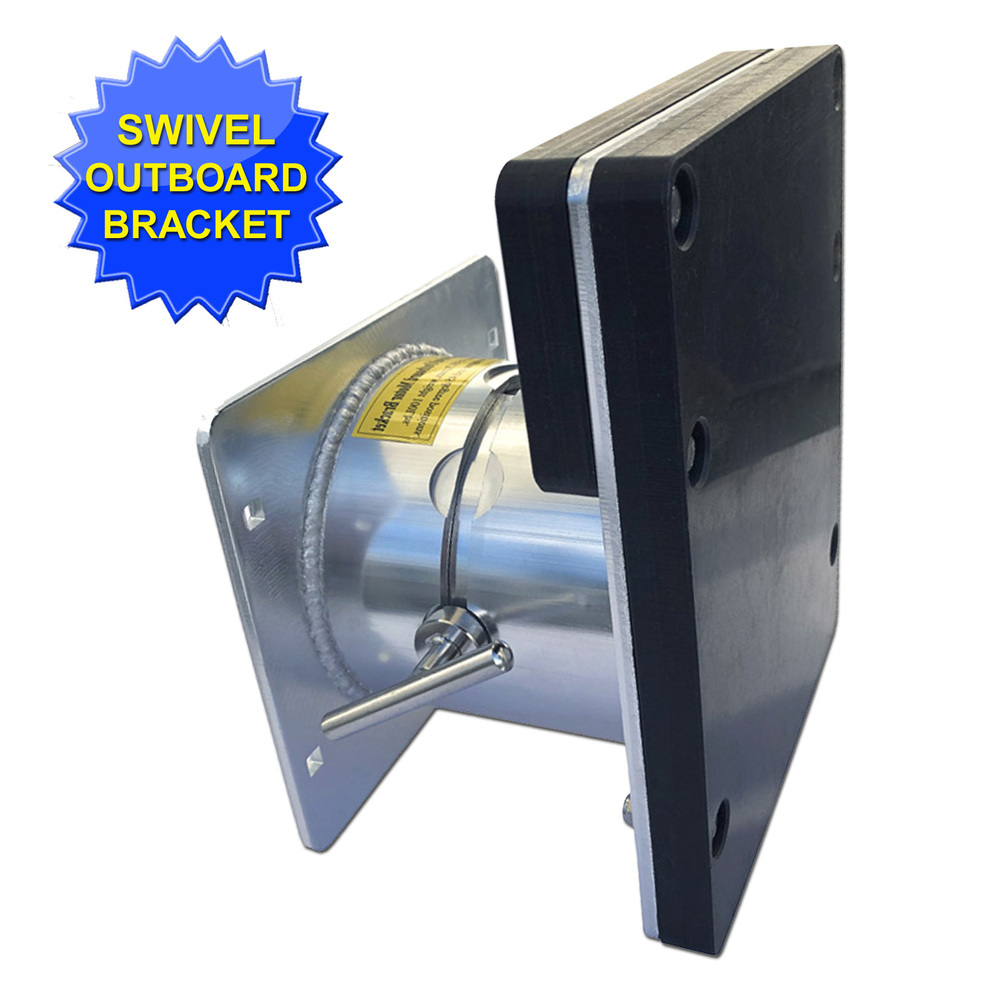

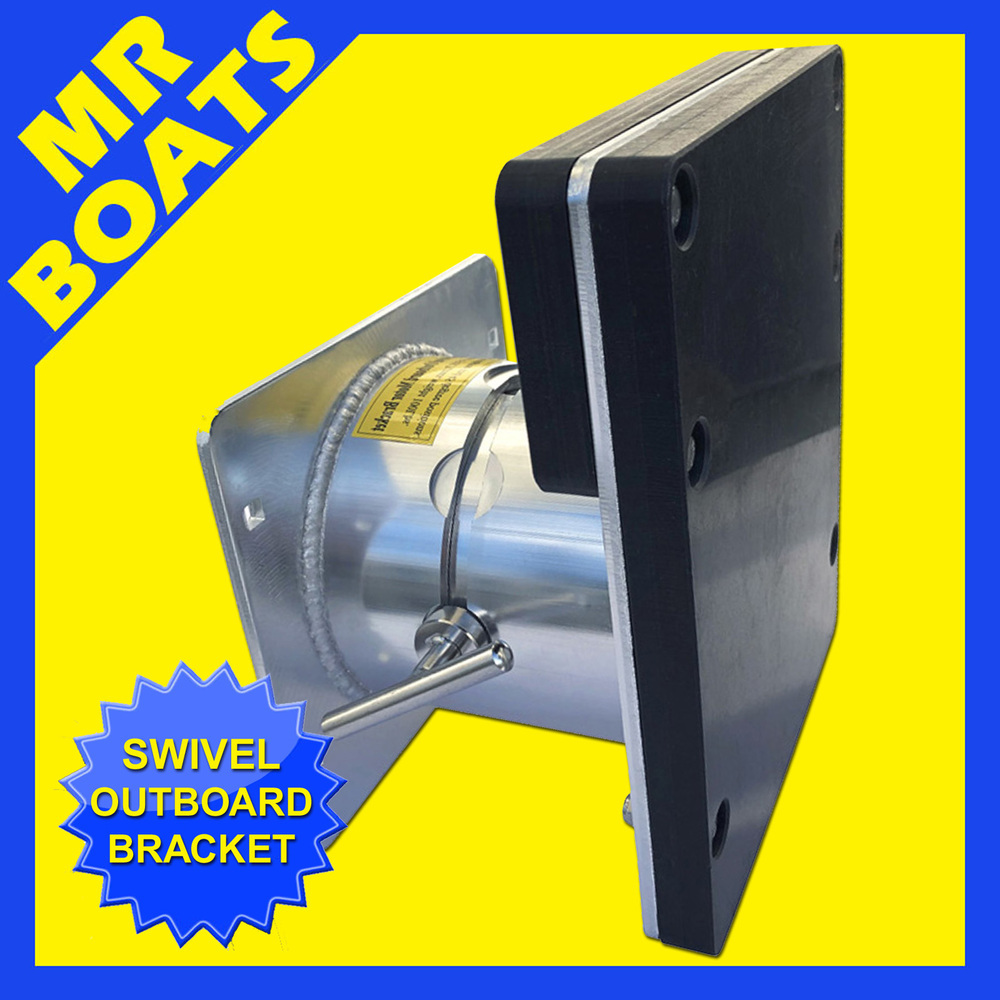

Swivel Outboard Motor Mounting Bracket

For Inflatable Boat Tenders

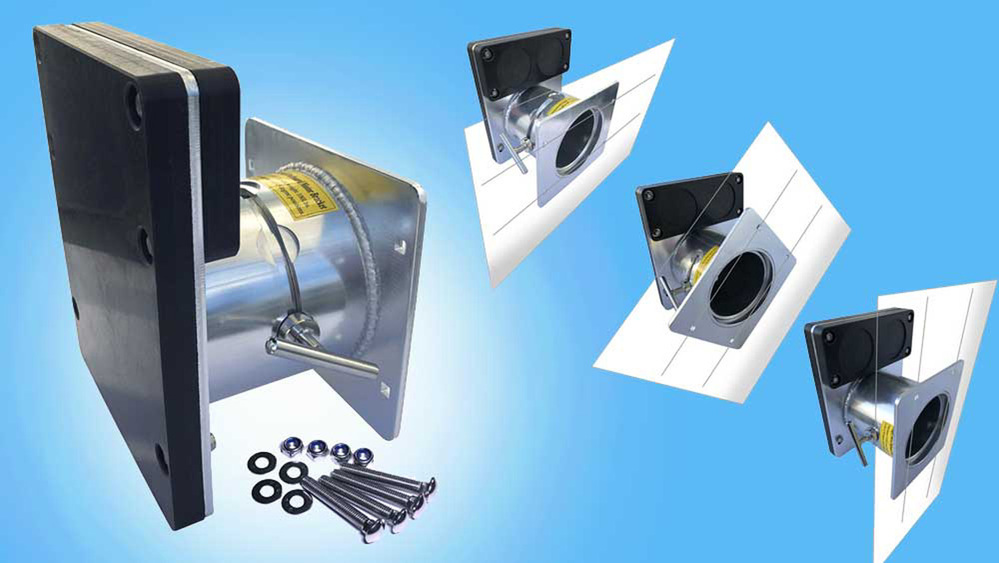

This ingenious Insta-lock dinghy swivel bracket has 2 positions: 45 and 90 degrees. This bracket will work for both inflatables (45 degree position) and RIB dinghy’s (90 degree position). Suits up to 9.8hp Outboards

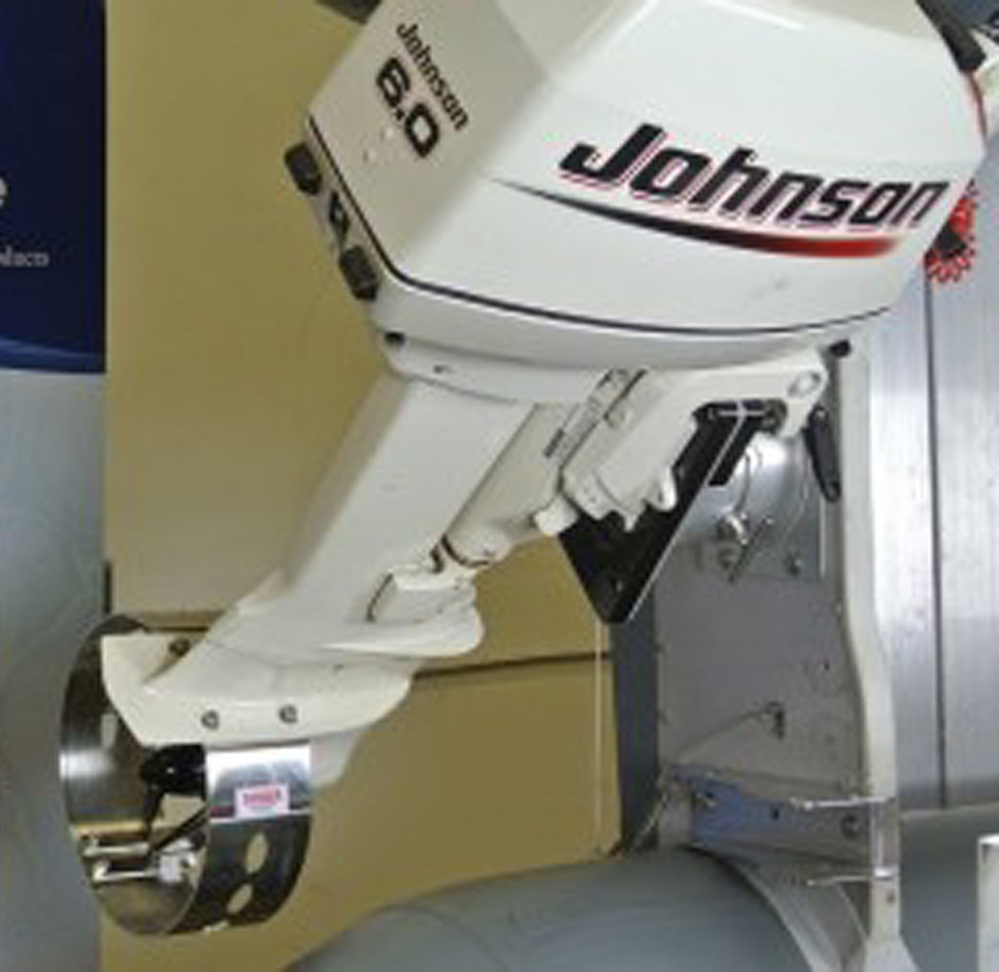

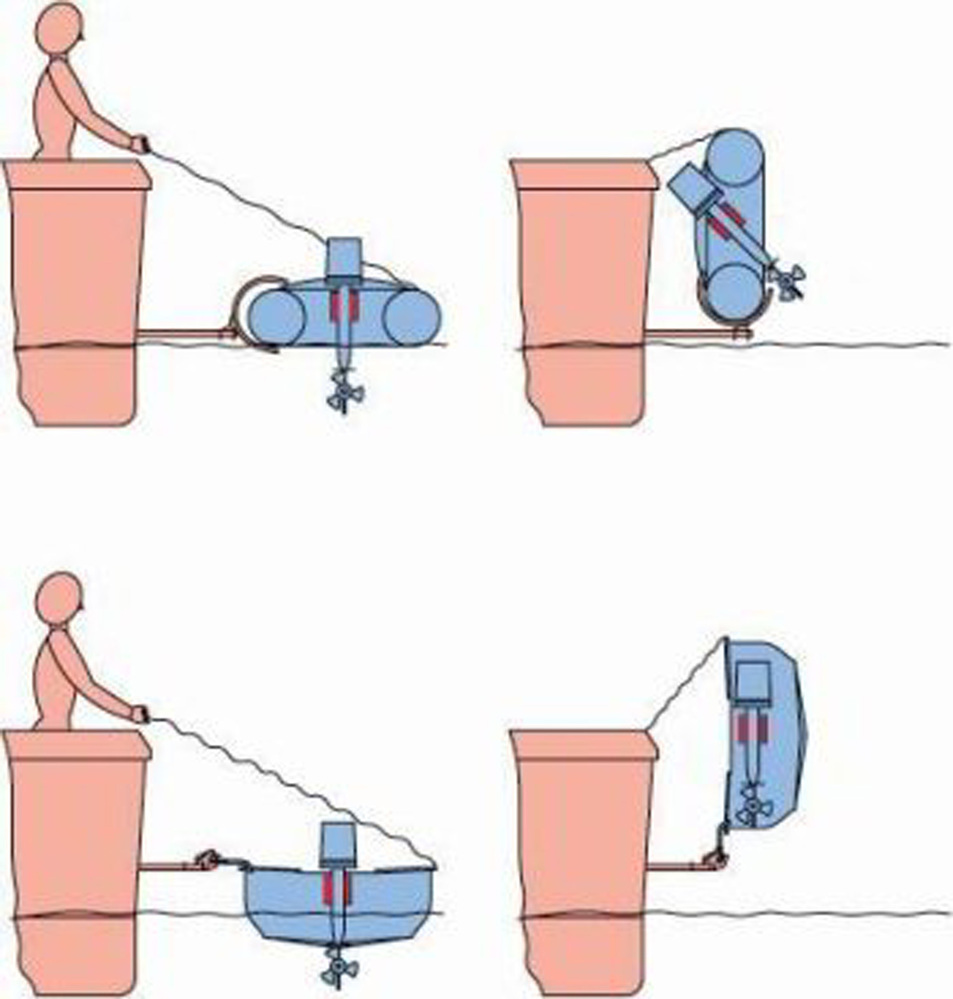

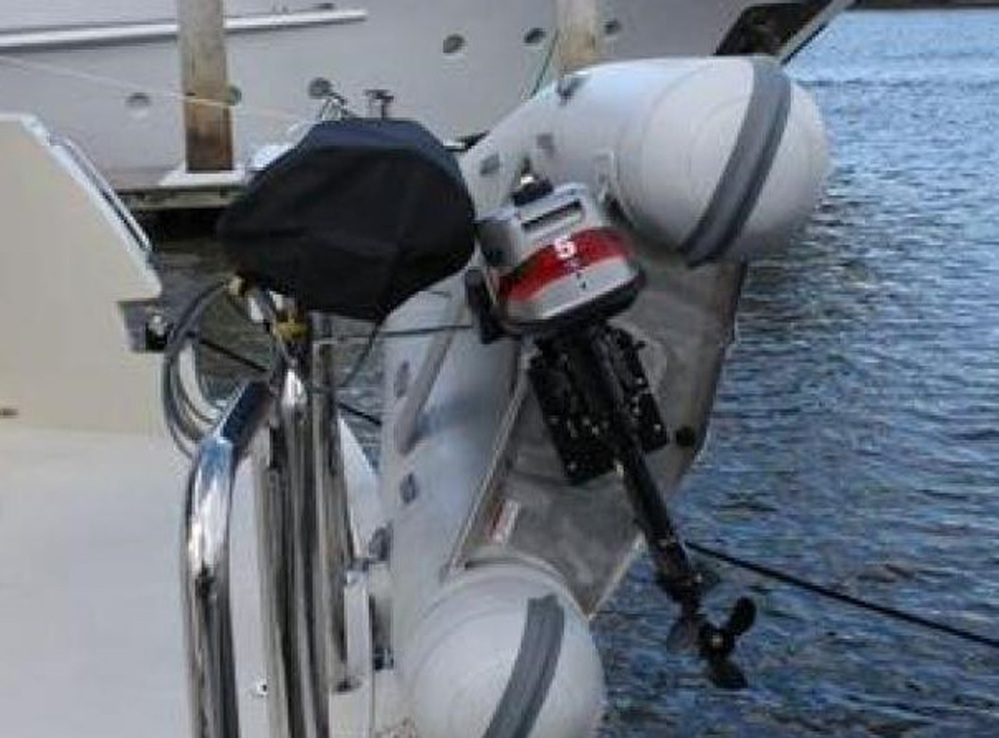

It's designed to allow the outboard motor to remain on the dinghy while it is being raised into position on the swim platform. Without the swivel bracket the crew would have to remove the outboard motor from the dinghy and store it somewhere on the boat in an upright position and secure it, which is quite often a problem. Now with the Insta-Lock swiveling engine mount, the dinghy bracket swivels and the motor remains nearer to vertical on the dinghy without having to be removed. Not having to remove the motor will also avoid any spilling of fuel or oil and the risk of heavy manual handling mishaps.

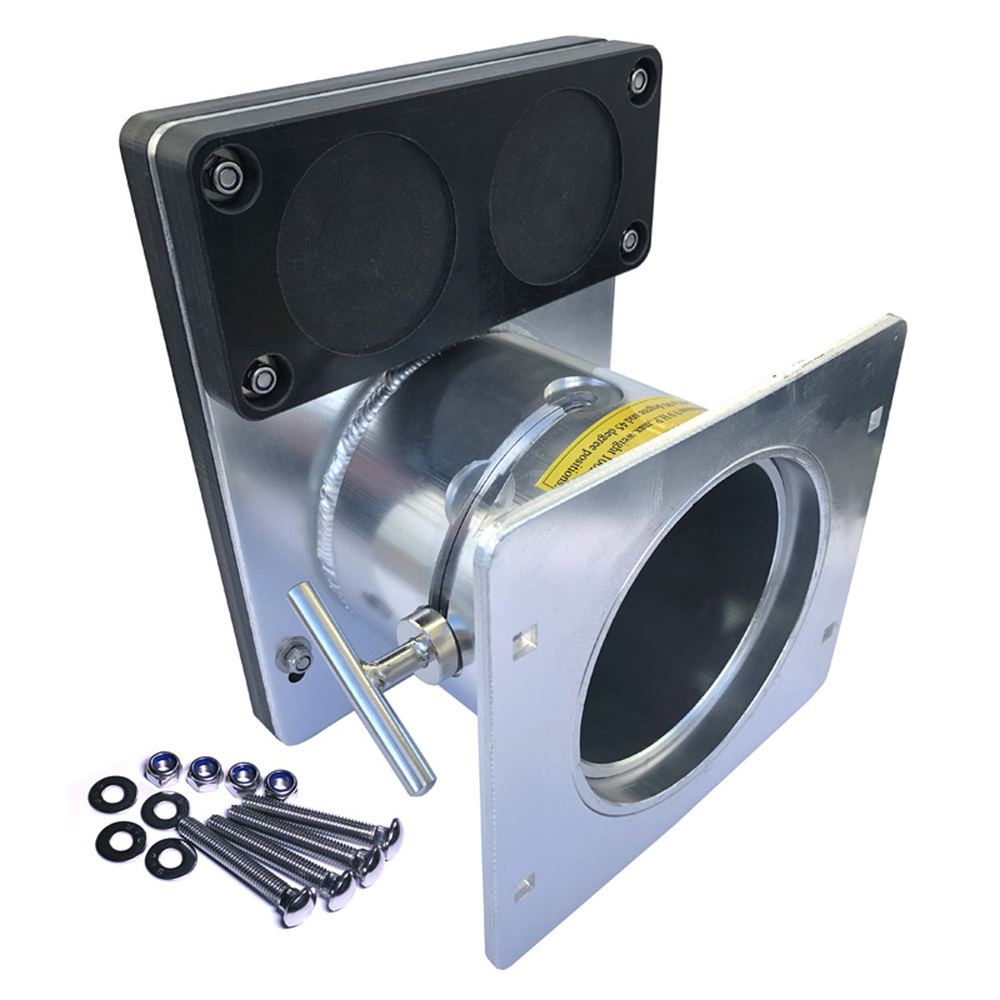

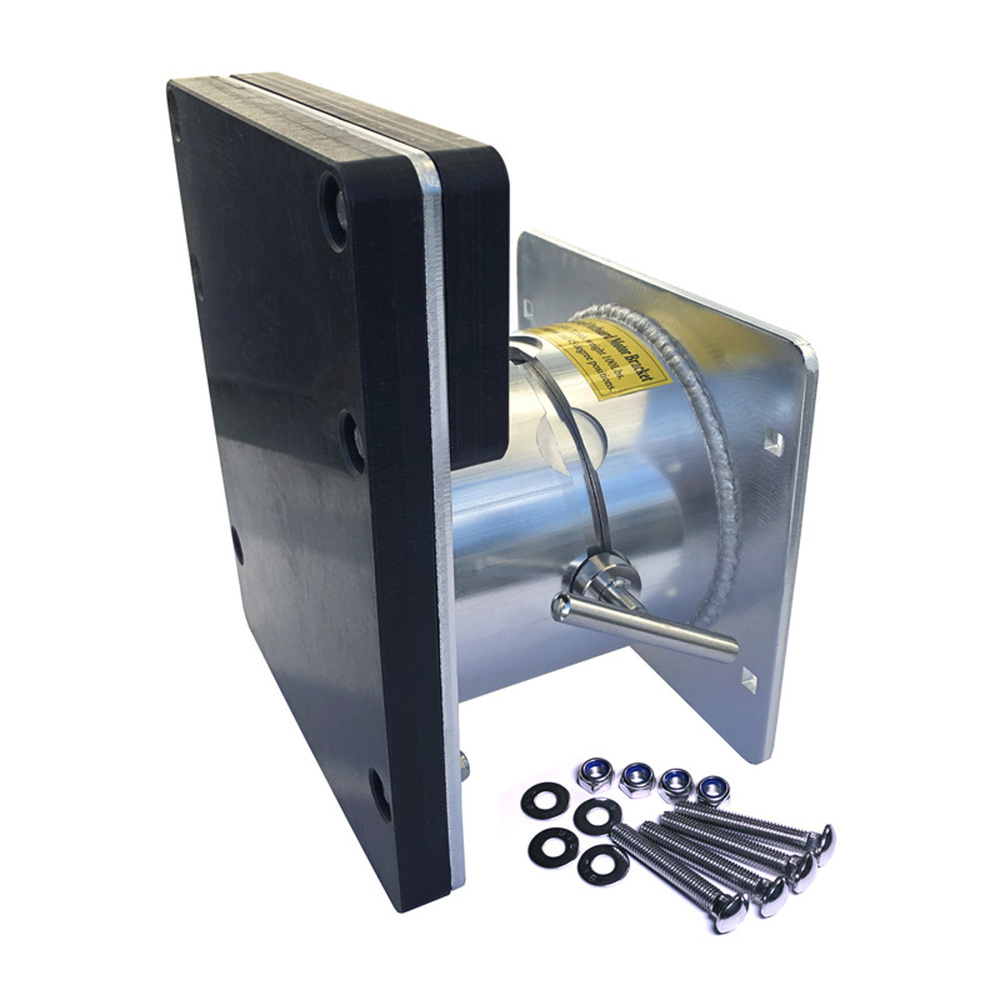

The mounting board is made of injection mold polypropylene plastic and requires no maintenance. The bracket is made of aluminum, 6061-T6 marine alloy, and has been clear anodized.

Features:

• Designed for inflatables and heavy hardshell dinghy’s in conjunction with our TGH Marine easy davits.

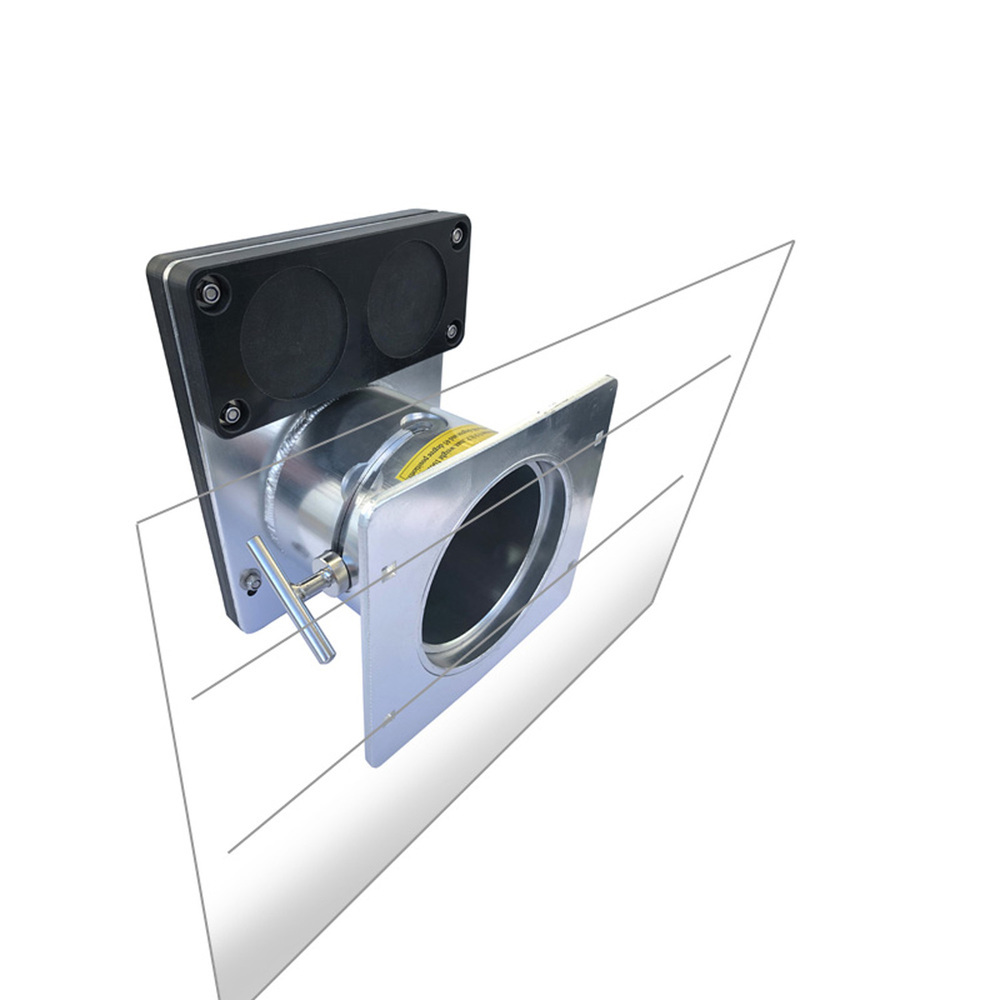

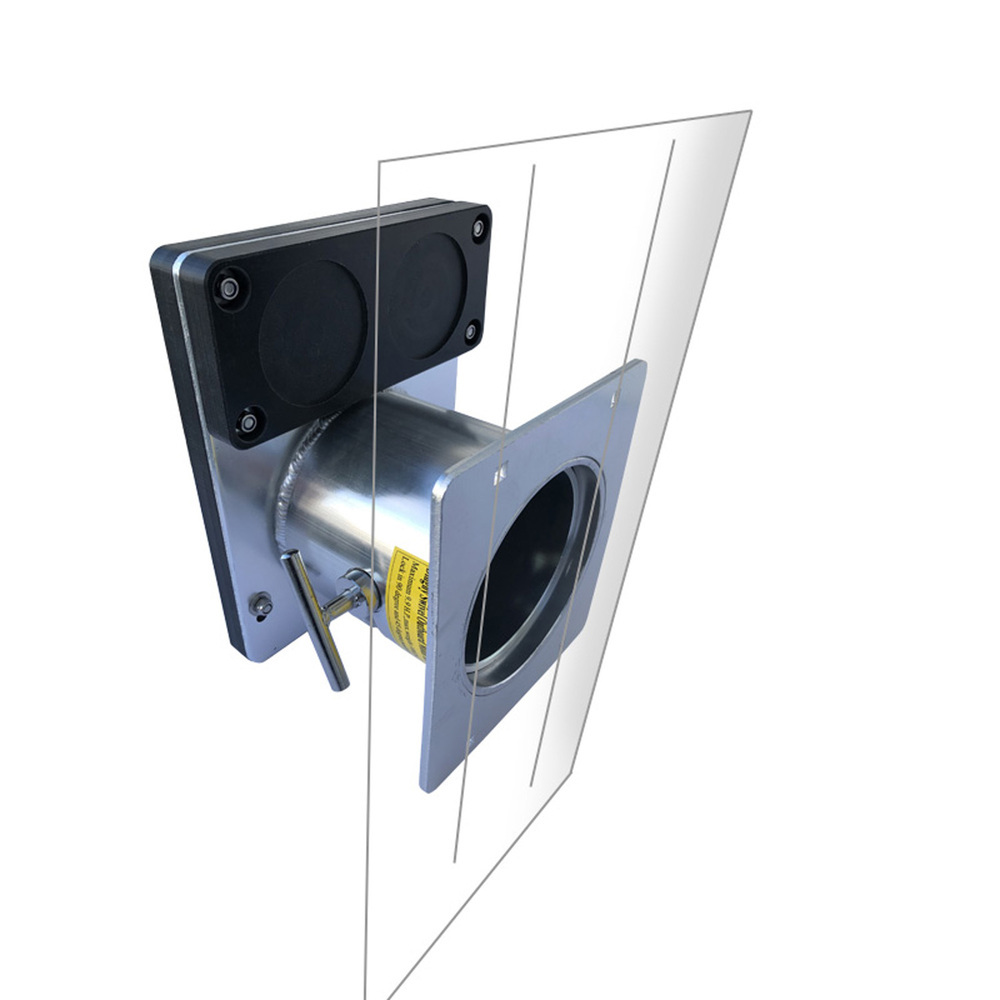

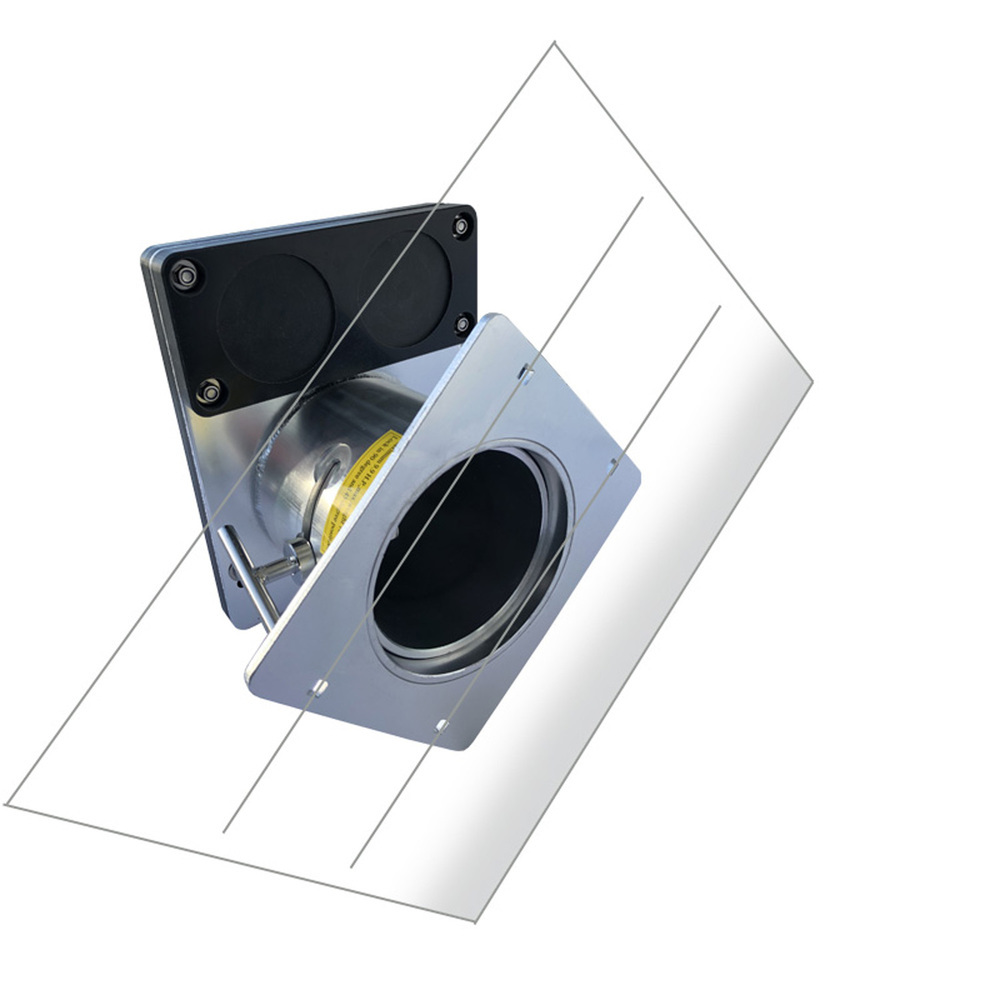

• This unit will lock the outboard in place at 45 degrees and also 90 degrees.
• Maximum up to 10HP
• Weight of outboard not to exceed 45 KG
• Mounting pad is polypropylene plastic
• Bracket constructed with 6061-T6 Marine alloy and clear anodized
