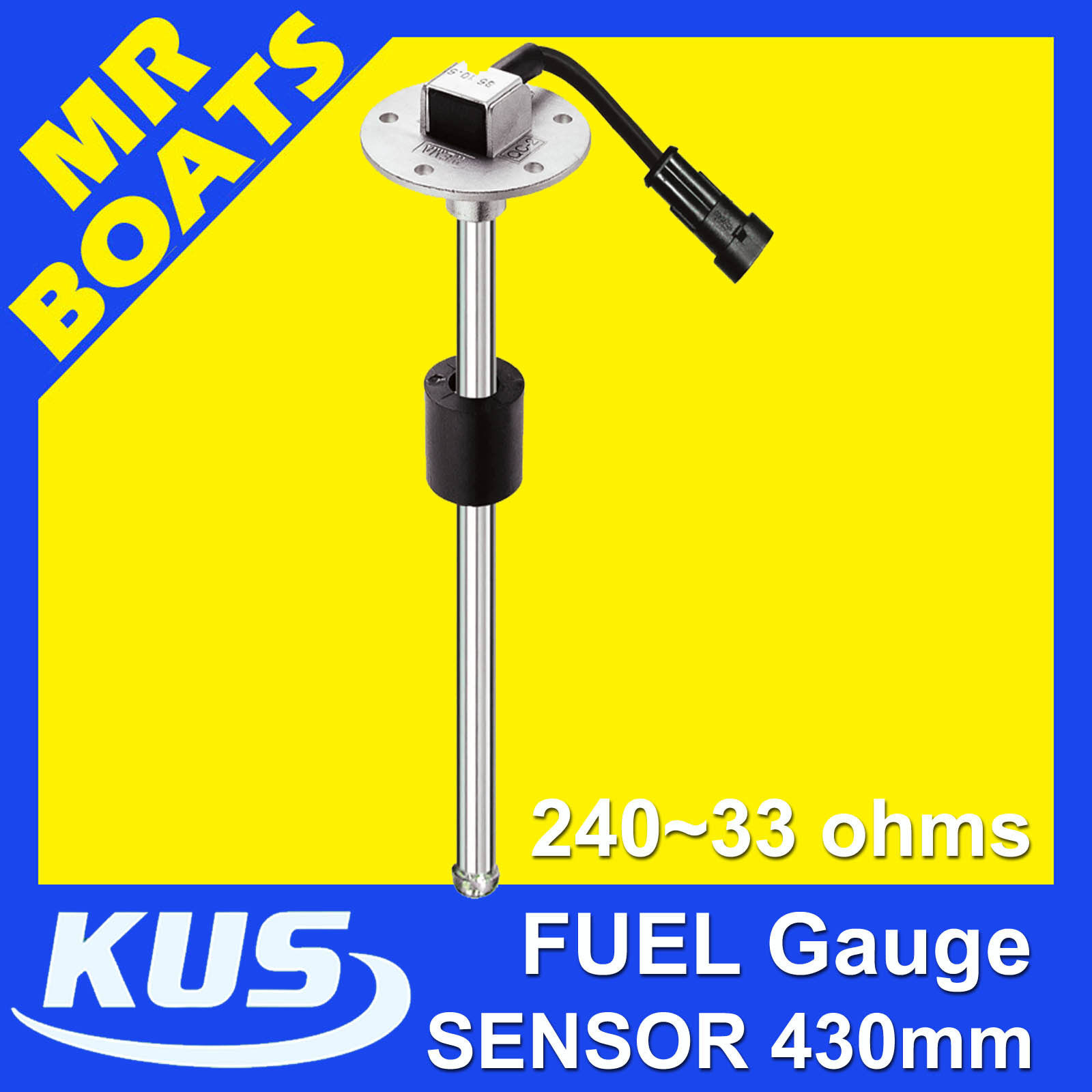

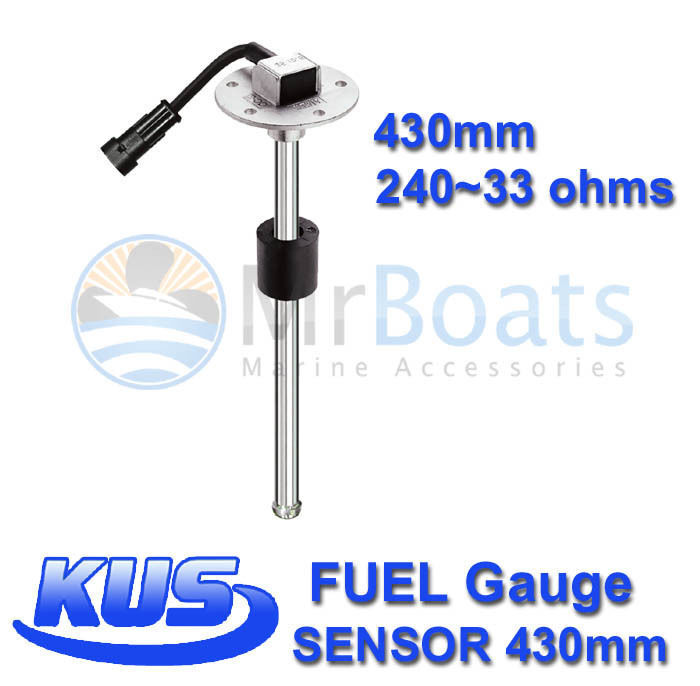

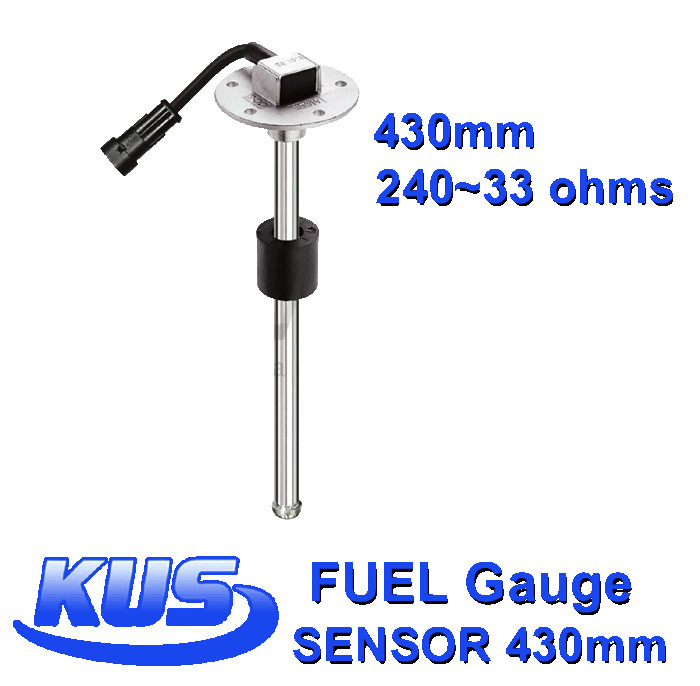

ECMS FUEL GAUGE METER SENDER

430mm

240~33O 12V

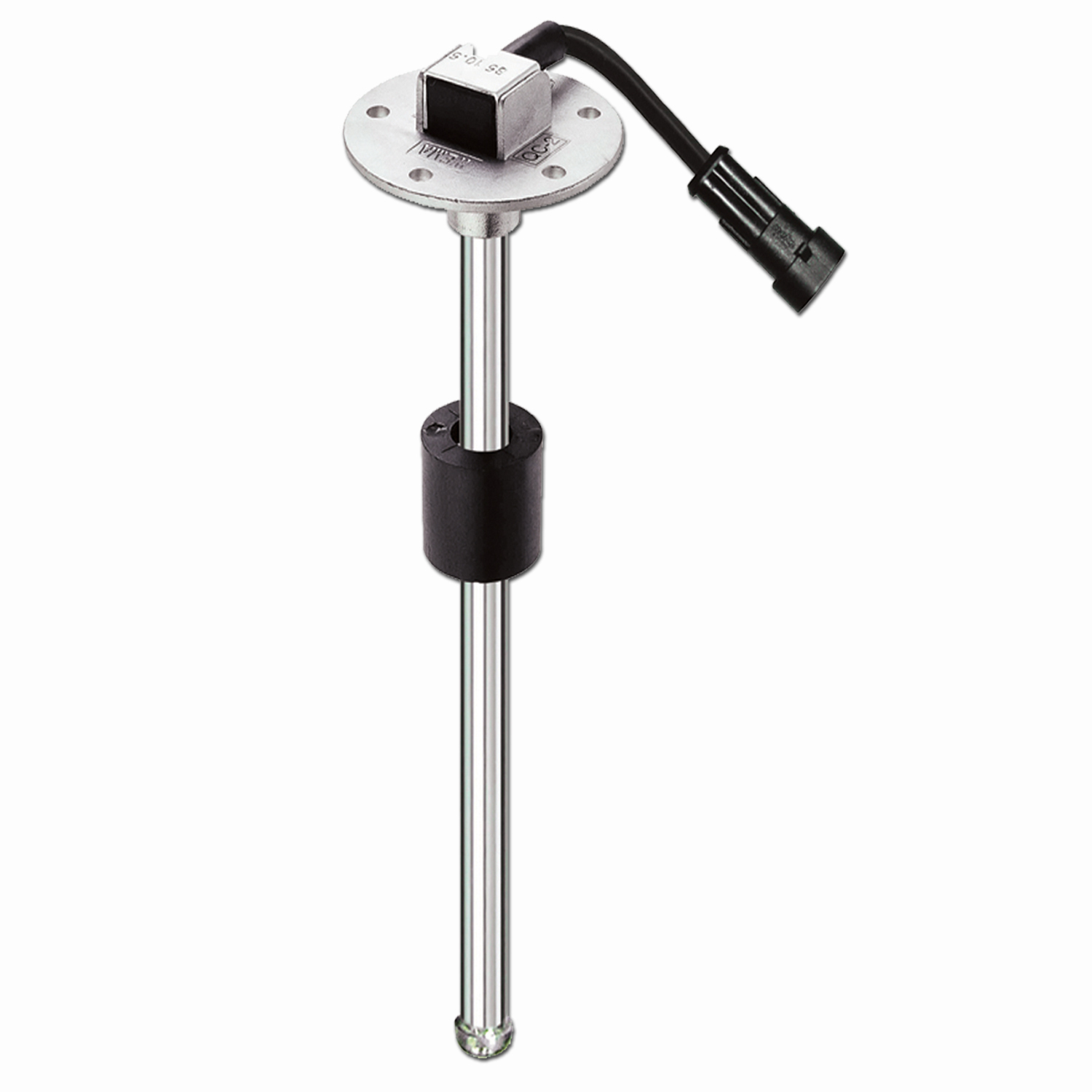

These Fuel / Water gauge senders have no mechanically moving parts so they can provide accurate tank level monitoring for many years of trouble free use.

SUS316 Stainless Steel construction with reed sensors spaced every 25mm. Perfectly suitable for Water, Fuel (Diesel, Gasoline, Ethanol blends, etc. NOT recommended for Black-Water Tanks. Standard Output from 33-240 Ohm

Features:

• Widely used on Marine, truck, generators/gen set, bus and automotive for fuel level detection

• OEM quality.

• Widely used in fuel, water, kerosene and chemical tanks

• Reed switch, steady output signal

• Anti-vibration,Stronge, Advanced corrosion resistance

• Resolution range: 10 to 40mm

• High quality fuel level senser

• Economical level sensing solution, long service lifespan

photo Fuel Sender Specs 450 Mr Boats copy_zpsgpm46qjp.gif

Specifications:

Material: SUS316 Stainless Steel
Length range: 430mm
Assembly: SAE standard 5 holes
Mounting: 5 pieces of M5 screws and 2 mm thick NBR gasket
Wire ends: No connector. Bare wires for multiple uses according the customer requirements
Supply Voltage: 10 to 32Volts
Output signal: Resistance range 240 - 33O
Resolution range: 10 to 40mm
Operating temperatures: -40 to 85°C
Protection rank: IP67

Please Note: There is no cable end connection on wires like in the picture. We have removed this and only have bare end wires to suit more applications.

Whats in the box:

1 X Fuel Gauge Sender
430mm
240~33O
12V

SKU:	860-00745
Model #:	860-00745
Brand:	ECMS
Artist / Author:	ECMS Fuel Gauge Sender 430mm 240 33 12V Boat Tank Level Meter Water Marine Part 860-00745

Shipping Weight:	0.2000kg
Shipping Width:	0.070m
Shipping Height:	0.390m
Shipping Length:	0.070m
Unit Of Measure:	ea

Type:	ECMS Fuel Gauge Sender 430mm 240 33 12V Boat Tank Level Meter Water Marine Part 860-00745
Format:	ECMS Fuel Gauge Sender 430mm 240 33 12V Boat Tank Level Meter Water Marine Part 860-00745
