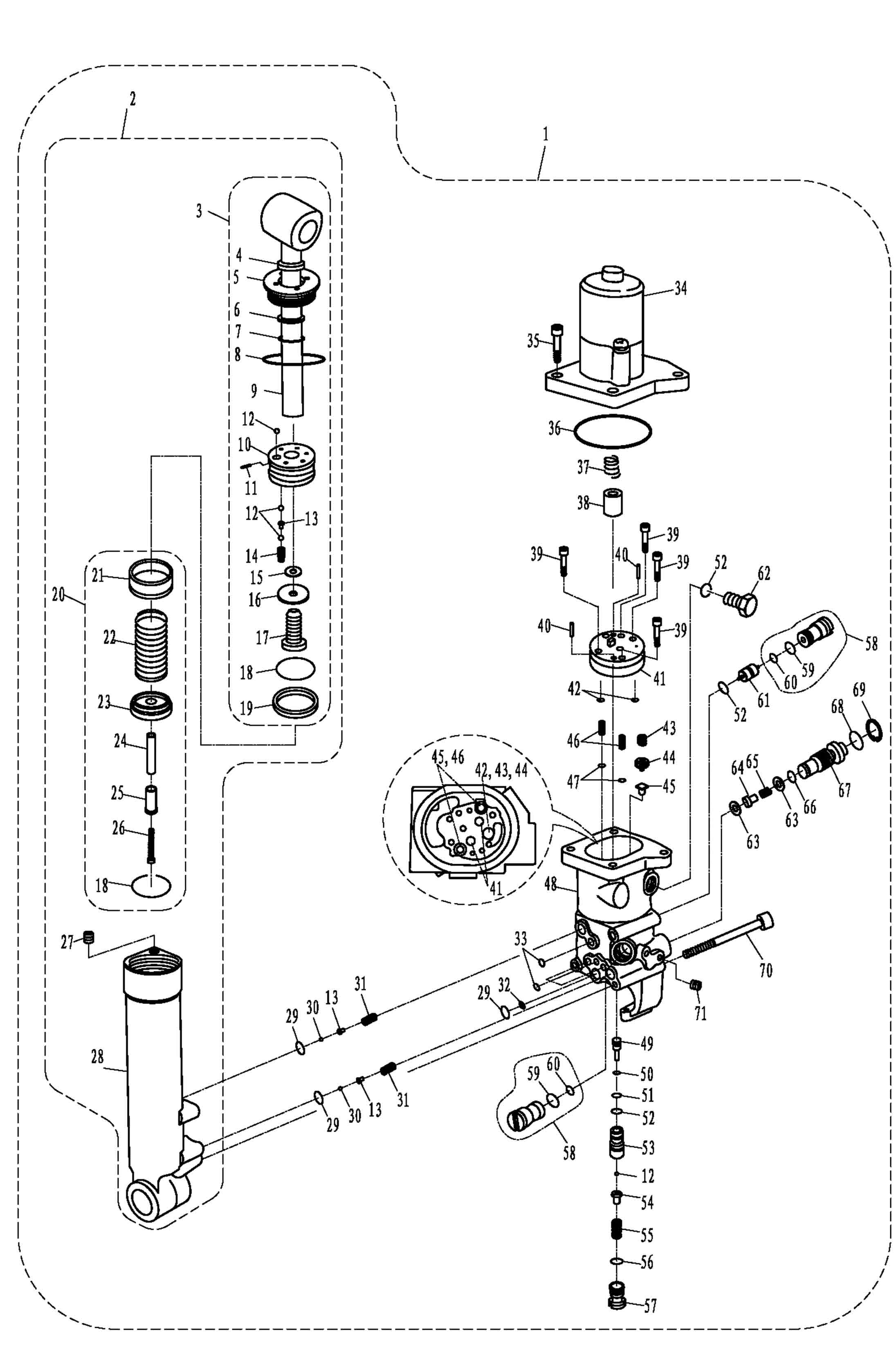

POWER TRIM&TILT ASSY
| Ref | Code | Product Name | Avail | Price | QTY |
|---|---|---|---|---|---|
| T40-10000000 | HYDRAULIC TILT ASSY | 1 |
$1,430.00
In stock
|
||
| T40-10010000 | LOCATING CYLINDER ASSY | 0 |
$440.00
Sold Out
|
||
| T40-10030000 | LOCATING CYLINDER&PISTON ASSY | 0 |
$209.00
Sold Out
|
||
| T40-10030202 | OIL SEAL 15x23x5 | 0 |
$5.50
Sold Out
|
||
| T40-10030200 | PISTON NUT | 0 |
$27.50
Sold Out
|
||
| JIS-B-2407-P15T2 | CIRCLIP P15T2 | 0 |
$2.20
Sold Out
|
||
| JIS-B-2401-P15 | O-RING Ø14. 8x2. 4 | 0 |
$2.20
Sold Out
|
||
| JASO-F404-24-045 | O-RING Ø44. 7x2. 4 | 0 |
$2.85
Sold Out
|
||
| T40-10030100 | SHAFT, TILT ASSY | 1 | Not for sale | ||
| T40-10030301 | PISTON | 1 | Not for sale | ||
| GB/T879. 4-1 5x12 | PIN Ø1. 5x12 | 1 | Not for sale | ||
| T85-06020202 | BALL 4 | 8 | Not for sale | ||
| T85-06020005 | SEAT, SPRING | 5 | Not for sale | ||
| T40-10030001 | SPRING | 5 | Not for sale | ||
| T40-10030002 | WASHER | 1 | Not for sale | ||
| T40-10030003 | WASHER | 1 | Not for sale | ||
| GB/T70. 2-M10x1. 25x40 | SCREW M10x1. 25x40 | 1 | Not for sale | ||
| JIS-B-2401-P39 | O-RING Ø38. 7x3. 5 | 0 |
$3.85
Sold Out
|
||
| JIS-B-2407-P39T2 | RING, BACK UP P39T2 | 0 |
$2.20
Sold Out
|
||
| T40-10010100 | FREE PISTON SUB ASSY | 0 |
$27.50
Sold Out
|
||
| T40-10010101A | FREE PISTON | 1 | Not for sale | ||
| T40-10010102 | SPRING | 1 | Not for sale | ||
| T40-10010104 | SEAL | 1 | Not for sale | ||
| T40-10010103 | BUSH, BOLT | 1 | Not for sale | ||
| T40-10010105 | BUSH, PISTON | 1 | Not for sale | ||
| GB/T70. 2-M4x35 | SCREW M4x35 | 1 | Not for sale | ||
| F15-07010004 | JAM 1/8" | 0 |
$2.75
Sold Out
|
||
| T40-10000002 | POSITIONING CYLINDER | 0 |
$203.50
Sold Out
|
||
| JIS-FG-11. 2 | O-RING Ø10. 7xØ1. 5 | 3 | Not for sale | ||
| T40-10000001 | BALL 1/8'' | 2 | Not for sale | ||
| T85-06020014 | SPRING, PISTON | 5 | Not for sale | ||
| T85-06010201 | FILTER | 1 | Not for sale | ||
| JIS-FG-6 | O-RING Ø5. 5x1. 5 | 4 | Not for sale | ||
| T40-10020500 | TILT MOTOR | 0 |
$528.00
Sold Out
|
||
| GB/T70. 1-M6x20 | SCREW M6x20 | 4 | Not for sale | ||
| GB/T3452. 1-48x2 | O-RING Ø48x2 | 0 |
$4.20
Sold Out
|
||
| T40-10020004 | SPRING | 0 |
$0.65
Sold Out
|
||
| T40-10020003 | LINK, MOTOR | 0 |
$4.40
Sold Out
|
||
| GB/T70.1-M4x25 | BOLT M4x25 | 4 | Not for sale | ||
| T85-06010705 | ROLLER Ø4x21. 8 G2-2-4 | 2 | Not for sale | ||
| T40-10020400 | GEAR PUMP ASSY | 0 |
$154.00
Sold Out
|
||
| JIS-FG-5 | O-RING Ø4. 5XØ1. 5 | 0 |
$1.10
Sold Out
|
||
| T40-10020002 | SPRING | 1 | Not for sale | ||
| T85-06010205 | SUPPORT, VALVE | 2 | Not for sale | ||
| T85-06010207 | SEAL, MAIN VALVE | 2 | Not for sale | ||
| T40-10020005 | FILTER, PUMP | 2 | Not for sale | ||
| JIS-FG-4 | O-RING Ø3. 5x1. 5 | 2 | Not for sale | ||
| T40-10020001 | HOUSING | 1 | Not for sale | ||
| T40-10020301 | PIN, VALVE SUPPORT | 0 |
$2.40
Sold Out
|
||
| JIS-B-2401-P3 | O-RING Ø2. 8x1. 9 | 0 |
$1.10
Sold Out
|
||
| JIS-B-2401-P8 | O-RING Ø7. 8x1. 9 | 0 |
$1.10
Sold Out
|
||
| JIS-B-2401-P9 | O-RING Ø8. 8x1. 9 | 0 |
$1.65
Sold Out
|
||
| T40-10020302 | SEAT , RELIEF VALVE | 0 |
$9.90
Sold Out
|
||
| T40-10020303 | SEAT, SPRING | 0 |
$2.00
Sold Out
|
||
| T40-10020304 | SPRING, UP | 0 |
$2.40
Sold Out
|
||
| JIS-B-2401-P11 | O-RING Ø10. 8x2. 4 | 0 |
$1.75
Sold Out
|
||
| T40-10020305 | SCREW, VALVE LOCK | 0 |
$3.10
Sold Out
|
||
| T85-06010503 | MIAN VALVE ASSY | 9 |
$39.60
In stock
|
||
| JIS-B-2401-P12. 5 | O-RING Ø12x1. 5 | 2 | Not for sale | ||
| JIS-FG-12 | O-RING Ø11. 5x1.5 | 2 | Not for sale | ||
| T85-06010501 | SHUTTLE PISTON | 0 |
$7.15
Sold Out
|
||
| T85-06010009 | BOLT, OIL DRAIN | 0 |
$3.85
Sold Out
|
||
| T85-06010601 | WASHER, VALVE | 0 |
$4.40
Sold Out
|
||
| T40-10020201 | SEAT, SPRING | 0 |
$2.00
Sold Out
|
||
| T40-10020202 | SPRING | 0 |
$1.65
Sold Out
|
||
| JIS-FG-10 | O-RING Ø9. 5x1. 5 | 0 |
$1.10
Sold Out
|
||
| T85-06010606 | VALVE BODY, MANUAL CONTROL | 0 |
$22.00
Sold Out
|
||
| GB/T3452. 1-17. 5x2. 65 | O-RING Ø17. 5x2. 65 | 0 |
$1.10
Sold Out
|
||
| GB/T893.1-20 | CIRCLIP 20 | 0 |
$1.10
Sold Out
|
||
| GB/T70. 1-M6x75 | BOLT M6x75 | 0 |
$1.55
Sold Out
|
||
| T85-06010002 | BLOCK, CYLINDER | 0 |
$2.20
Sold Out
|
